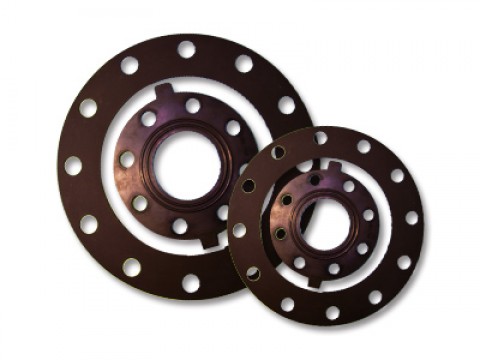

法蘭墊片(PACKING)
產品資訊
JIS 10K |
|||||||
|---|---|---|---|---|---|---|---|
| 尺寸 | 規格 | 外徑 | 內徑 | 厚 | 中心 | 孔徑 | 孔數 |
| 1/2" | 10K | 95 | 22.5 | 3 | 70 | 15 | 4 |
| 3/4" | 10K | 100 | 28 | 3 | 75 | 15 | 4 |
| 1" | 10K | 125 | 34.5 | 3 | 90 | 19 | 4 |
| 1 1/4" | 10K | 135 | 43.5 | 3 | 100 | 19 | 4 |
| 1 1/2" | 10K | 140 | 50 | 3 | 105 | 19 | 4 |
| 2 " | 10K | 155 | 61.5 | 3 | 120 | 19 | 4 |
| 2 1/2" | 10K | 175 | 77.5 | 3 | 140 | 19 | 4 |
| 3" | 10K | 185 | 90 | 3 | 150 | 19 | 8 |
| 4" | 10K | 210 | 116 | 3 | 175 | 19 | 8 |
| 5" | 10K | 250 | 142 | 3 | 210 | 23 | 8 |
| 6" | 10K | 280 | 167 | 3 | 240 | 23 | 8 |
| 8" | 10K | 330 | 218 | 3 | 290 | 23 | 12 |
| 10" | 10K | 400 | 270 | 3 | 355 | 25 | 12 |
