O型環 (O-Ring)
產品資訊
|
|
靜態使用 Static |
動態使用(氣體介質) Dynamic(pneumatic) |
動態使用(液體介質) Dynamic(liqiod) |
|||||
|---|---|---|---|---|---|---|---|---|
|

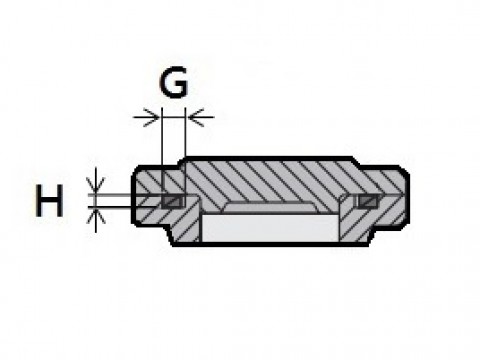

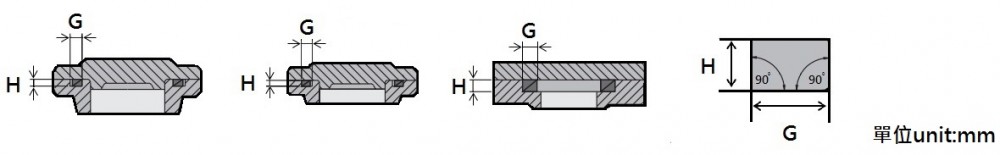

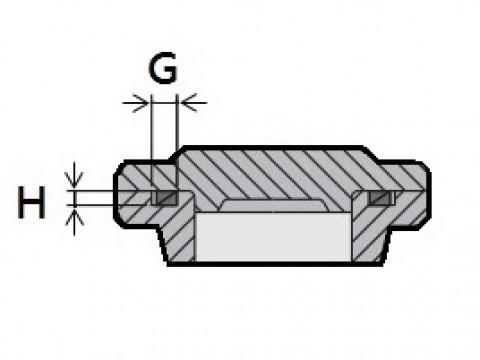

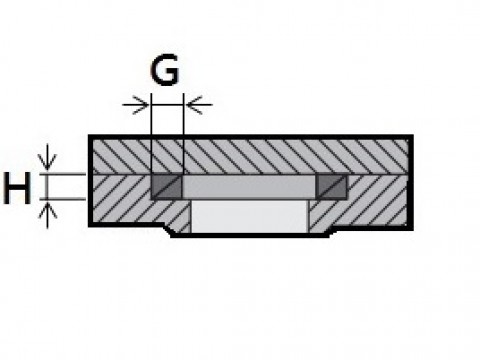

O環線徑 W |
槽深 H |
槽寬 G |
槽深 H |
槽寬 G |
槽深 H |
槽寬 G |
||
|
1 |
0.8 |
1.3 |
0.95 |
1.3 |
0.9 |
1.3 |
||
|
1.5 |
1.1 |
1.9 |
1.35 |
1.9 |
1.3 |
1.9 |
||
|
1.6 |
1.2 |
2.1 |
1.45 |
2 |
1.4 |
2 |
||
|
1.78 |
1.3 |
2.3 |
1.55 |
2.3 |
1.5 |
2.3 |
||
|
1.9 |
1.4 |
2.4 |
1.75 |
2.4 |
1.6 |
2.4 |
||
|
2 |
1.5 |
2.6 |
1.8 |
2.4 |
1.7 |
2.4 |
||
|
2.4 |
1.8 |
3.1 |
2.15 |
2.9 |
2.1 |
2.9 |
||
|
2.5 |
1.9 |
3.2 |
2.25 |
3 |
2.2 |
3 |
||
|
2.62 |
2 |
3.4 |
2.35 |
3.1 |
2.3 |
3.1 |
||
|
2.7 |
2.1 |
3.5 |
2.45 |
3.2 |
2.4 |
3.2 |
||
|
3 |
2.3 |
3.9 |
2.75 |
3.6 |
2.6 |
3.6 |
||
|
3.5 |
2.7 |
4.5 |
3.25 |
4.2 |
3.1 |
4.2 |
||
|
3.53 |
2.7 |
4.5 |
3.25 |
4.2 |
3.1 |
4.2 |
||
|
3.6 |
2.8 |
4.7 |
3.35 |
4.3 |
3.2 |
4.3 |
||
|
4 |
3.15 |
5.2 |
3.7 |
4.8 |
3.5 |
4.8 |
||
|
4.5 |
3.6 |
5.8 |
4.2 |
5.4 |
4 |
5.4 |
||
|
5 |
4 |
6.5 |
4.65 |
6 |
4.45 |
6 |
||
|
5.33 |
4.3 |
6.9 |
4.95 |
6.4 |
4.7 |
6.4 |
||
|
5.5 |
4.5 |
7.1 |
5.15 |
6.6 |
4.95 |
6.6 |
||
|
5.7 |
4.65 |
7.4 |
5.35 |
6.9 |
5.1 |
6.9 |
||
|
6 |
4.95 |
7.8 |
5.65 |
7.2 |
5.4 |
7.2 |
||
|
6.5 |
5.4 |
8.4 |
6.1 |
7.8 |
5.8 |
7.8 |
||
|
6.99 |
5.85 |
9.1 |
6.6 |
8.4 |
6.3 |
8.4 |
||
|
7 |
5.85 |
9.1 |
6.6 |
8.4 |
6.3 |
8.4 |
||
|
7.5 |
6.3 |
9.7 |
7.1 |
9 |
6.7 |
9 |
||
|
8 |
6.75 |
10.4 |
7.76 |
9.6 |
7.2 |
9.6 |
||
|
8.4 |
7.15 |
10.9 |
7.9 |
10.1 |
7.6 |
10.1 |
||
|
8.5 |
7.25 |
11 |
8 |
10.2 |
7.7 |
10.2 |
||
|
9 |
7.7 |
11.7 |
8.5 |
10.8 |
8.2 |
10.8 |
||
|
9.5 |
8.2 |
12.3 |
9 |
11.4 |
8.6 |
11.4 |
||
|
10 |
8.65 |
13 |
9.5 |
12 |
9.1 |
12 |
||
